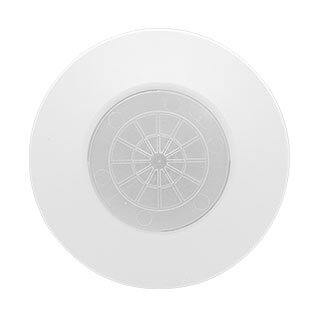

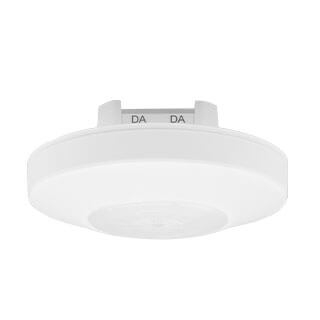

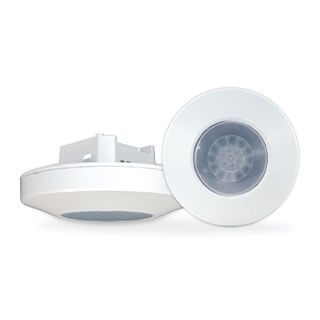

Artilect Smart Motion/Light Sensor

Artilect Smart Motion/Light Sensor
Product Description
  • DALI Bus input.
  • PIR and light sensor.
  • DALI-2/IEC 62386 303, 304
  • Support Smart Link Engine Application Controller.
  • Global safety compliant, suitable for home and office.
PRODUCTS

Specification

ModelAGD-DB122DA2
Sensor Motion PIR motion sensor, 8m range at 2.5m high.
Light 1 ~ 65500 lux, sensitive adjustable.
Input Voltage DALI Bus
Current 8mA
Environment Temperature -20 ~ +45℃
Humidity 20 ~ 95%
Storage -40 ~ +80℃,10 ~ 95%
Interface DALI DALI-2 IEC 62386 101, 103, 303, 304
Others Smart Engine Smart Link Engine
Dimension 105*45mm
Accessory Surface mounting box / Spring clip box

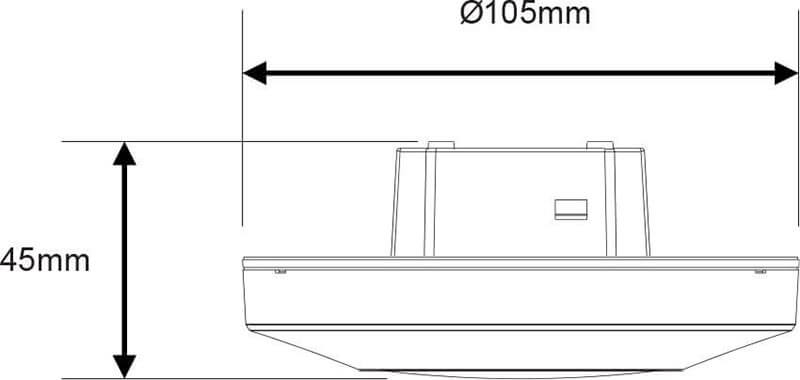

Dimension

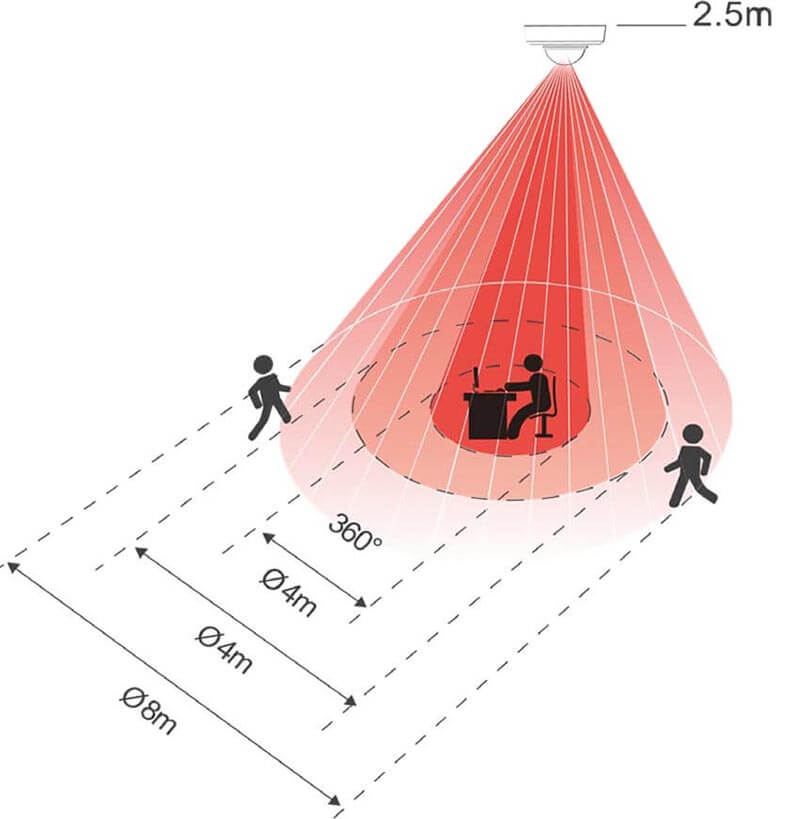

Detect Range
